Name: GT-700
Category: High Speed Graphite Machining Center
Product details

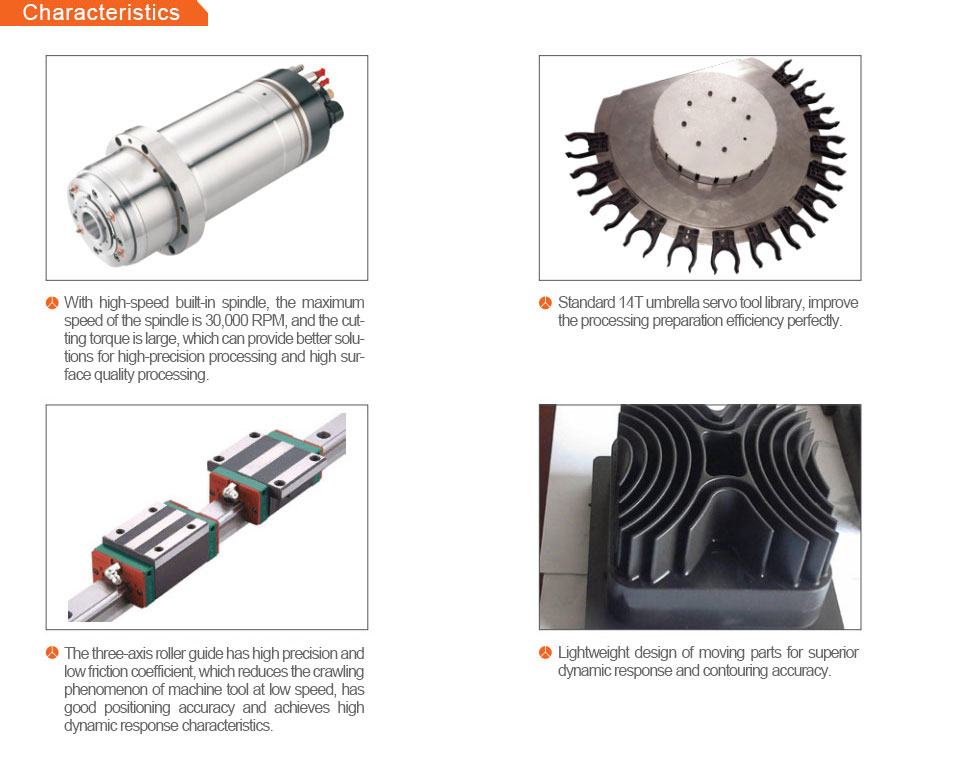

Based on the advantages of strong rigidity, structural symmetry and strong stability, the high-speed milling of graphite introduces the international advanced dynamic rigid design concept, lightweight design of moving parts, strong stability and fast response. Good characteristics. The separate design of the moving parts and the processing area separates the stone grinding dust and is suitable for the processing of graphite materials. |
| PROJECT | DESCRIPITION | UNIT | GT-700 |
| TRAVEL | Type of XYZ Axis Guide | High Rigid Roller Rail | |
| X-axis/Y-axis/Z-axis | mm | 700/600/350 | |
Spindle nose end to working table | mm | 150-500（approximate value） | |
| Distance between two columns | mm | 960（approximate value） | |
| TABLE | Workbench (long x wide) | mm | 700x600 |
| maximum payload | kg | 350 | |
| SPINDLE | Spindle speed/RPM | rpm | CVT30000 |
| Spindle bore taper/TYPE | BT30 | ||
| FEED RATE | C00 Fast Feed (X/Y/Z) | mm/min | 15000/15000/10000 |
| G01 Cutting Feed | mm/min | 1-8000 | |
| PRECISION | Location accuracy/repetition accuracy | mm | 0.01/0.008 |
| OTHER | Machine weight | kg | 5000（About） |
